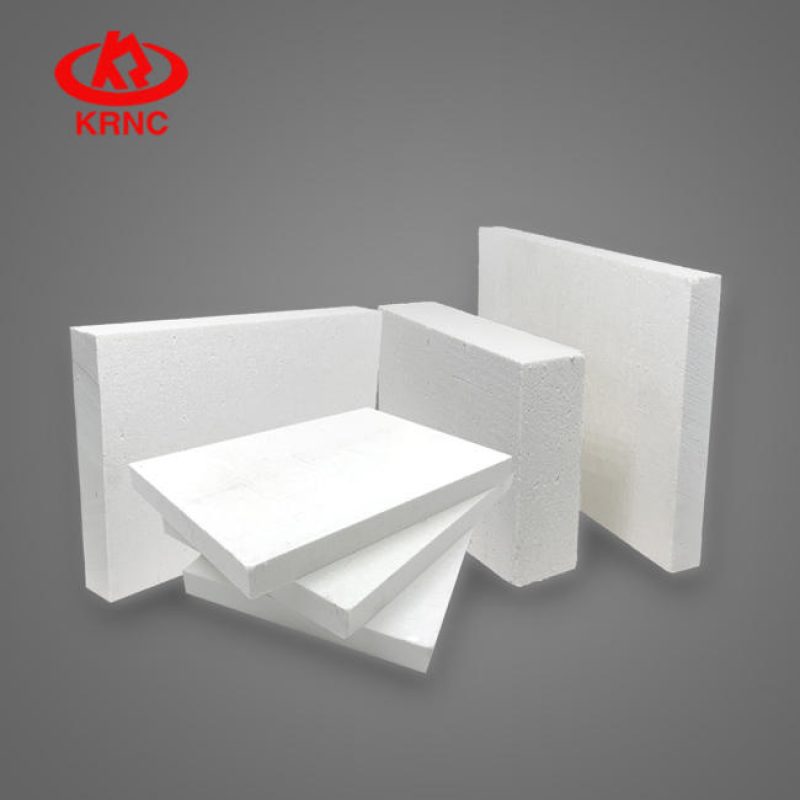

Ceramic Fiber Board

Ceramic fiber board is made of aluminum silicate fiber cotton material, then is adopted the way of vacuum molding or dry method, through the way of drying and press molding, final refined processing into the ordinary type of ceramic fiber board.

The ordinary type has the same performance as the corresponding loose aluminum silicate fiber cotton. Product texture hard, High toughness and strength, good wind erosion resistance. Light in texture, No expansion in heating, convenient for construction, it can be cut and bent arbitrarily and is an ideal energy-saving product for kiln pipes and other insulation equipment.

Performance Characters

Low heat conduction and capacity.
Good thermal stability and tensile shock performance.
High compressive strength and good toughness.

Characteristics of ceramic fiber board

Ceramic fiber board is suitable for industrial kiln wall lining, masonry insulation layer; Heat insulation layer for high-temperature equipment; High-temperature kiln lining; kiln car protection door baffle, and furnace temperature divider.

Type	Ordinary	Standard	High Purity	High Alumina	Zirconium
Classification temperature, ℃	1100	1260	1260	1360	1430
Working temperature, ℃	＜1000	1050	1100	1200	1350
Colour	white	Pure white	Pure white	Pure white	Pure white
B.D, kg/m3	260-320	260-320	260-320	260-320	260-320
PERMANENT liner change, % 24Hours under ,B.D320kg/m3	-4 (1000℃)	-3 (1000℃)	-3 (1100℃)	-3 (1250℃)	-3 (1350℃)
HEAT CONDUCTIVITY COEFFICIENT w/m·k	0.085(400℃)	0.085(400℃)	0.085(400℃)	0.085(400℃)	0.085(400℃)
B.D, 285kg/m3	0.132(800℃)	0.132(800℃)	0.132(800℃)	0.132(800℃)	0.132(800℃)
B.D, 285kg/m3	0.180(1000℃)	0.180(1000℃ )	0.180(1000℃)	0.180(1000℃)	0.180(1000℃)
STRENGTH EXTENSION, Mpa, THICKNESS SHRINKAGE 10%	0.5	0.5	0.5	0.5	0.5
Al2O3	44%	46%	47～49%	52～55%	39～40%
Al2O3+SiO2	96%	97%	99%	99%	-
Al2O3+SiO2+ZrO2	-	-	-	-	99%
ZrO2	-	-	-	-	15～17%
Fe2O3	＜1.2%	＜1.0%	0.2%	0.2%	0.2%
Na2O+K2O	≤0.5%	≤0.5%	0.2%	0.2%	0.2%
